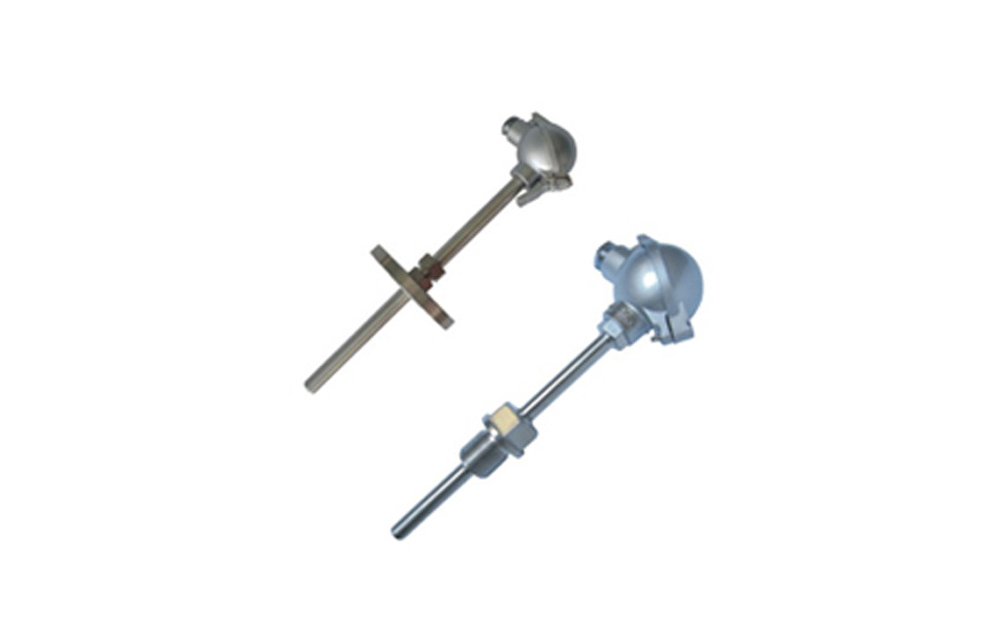

WZ Armored thermal resistance
Explosion-proof mark: flameproof type ExdIICT6
Protection class :1P65
Insertion depth: 100-50000mm
Armouring sleeve diameter :Φ3 to Φ8
Armor sleeve material: stainless steel
Process connection: threaded connection M6X1.5, M27X2
Flange connection HG20592~20635-97
ch
English
Armored thermal resistance uses the characteristic that the resistance of a substance changes with its temperature to measure the temperature. The armored thermal resistance is small in diameter and easy to bend, which is suitable for installation in special occasions such as narrow pipes and requiring fast response and miniaturization. It can automatically detect gas, liquid medium and solid surface in the temperature range of -200~600℃.
